Suzuki Swift 1.2 Mild Hybrid Motion Engine Diagram
A clear learner-driver guide to the key under-bonnet checks for the Suzuki Swift Motion Mild Hybrid, including brake fluid, coolant, oil, screen wash and hybrid awareness.
Suzuki Swift 1.2 Mild Hybrid labelled for Show Me Tell Me
This Suzuki Swift 1.2 Mild Hybrid Motion engine diagram is designed to help learner drivers quickly identify the main under-bonnet components they may be asked about during the driving test.
Use it to practise where everything lives before test day: brake fluid, engine coolant, oil dipstick and filler cap, screen wash, the 12V battery and mild-hybrid safety areas.

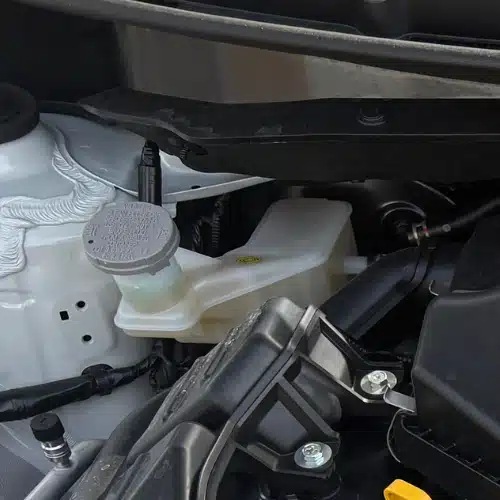

Brake fluid reservoir
- Location: Usually towards the rear of the engine bay near the driver side bulkhead.
- How to check: Look at the side of the reservoir and make sure the fluid is between MIN and MAX.
- Test answer: “I would check the level is between the minimum and maximum marks. If it is low, I would get it checked before driving.”

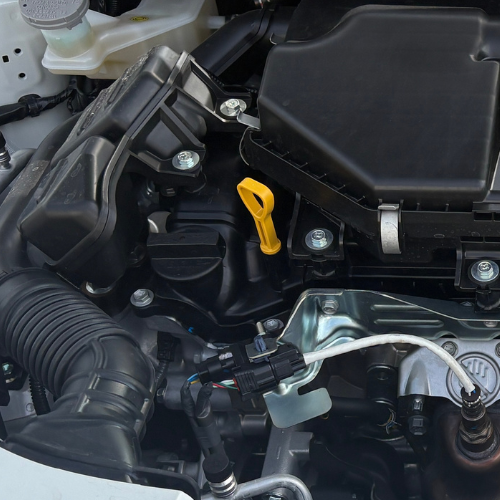

Engine oil dipstick and filler cap
- Location: Find the dipstick handle and the oil filler cap on top of the engine.
- How to check: Remove the dipstick, wipe it clean, reinsert it fully, then remove it again to check the oil level is between the MIN and MAX marks.
- Top-up: Suzuki recommends 0W-20 engine oil for the 1.2 Mild Hybrid engine. If the oil level is below the minimum mark, top up using the correct oil a little at a time and avoid overfilling.
Screen wash reservoir
- Location: Usually marked by a windscreen washer symbol, often with a blue cap.
- How to check: Open the cap and visually check if it needs topping up.
- Tip: Use proper screen wash mix, especially in winter, to help prevent freezing.

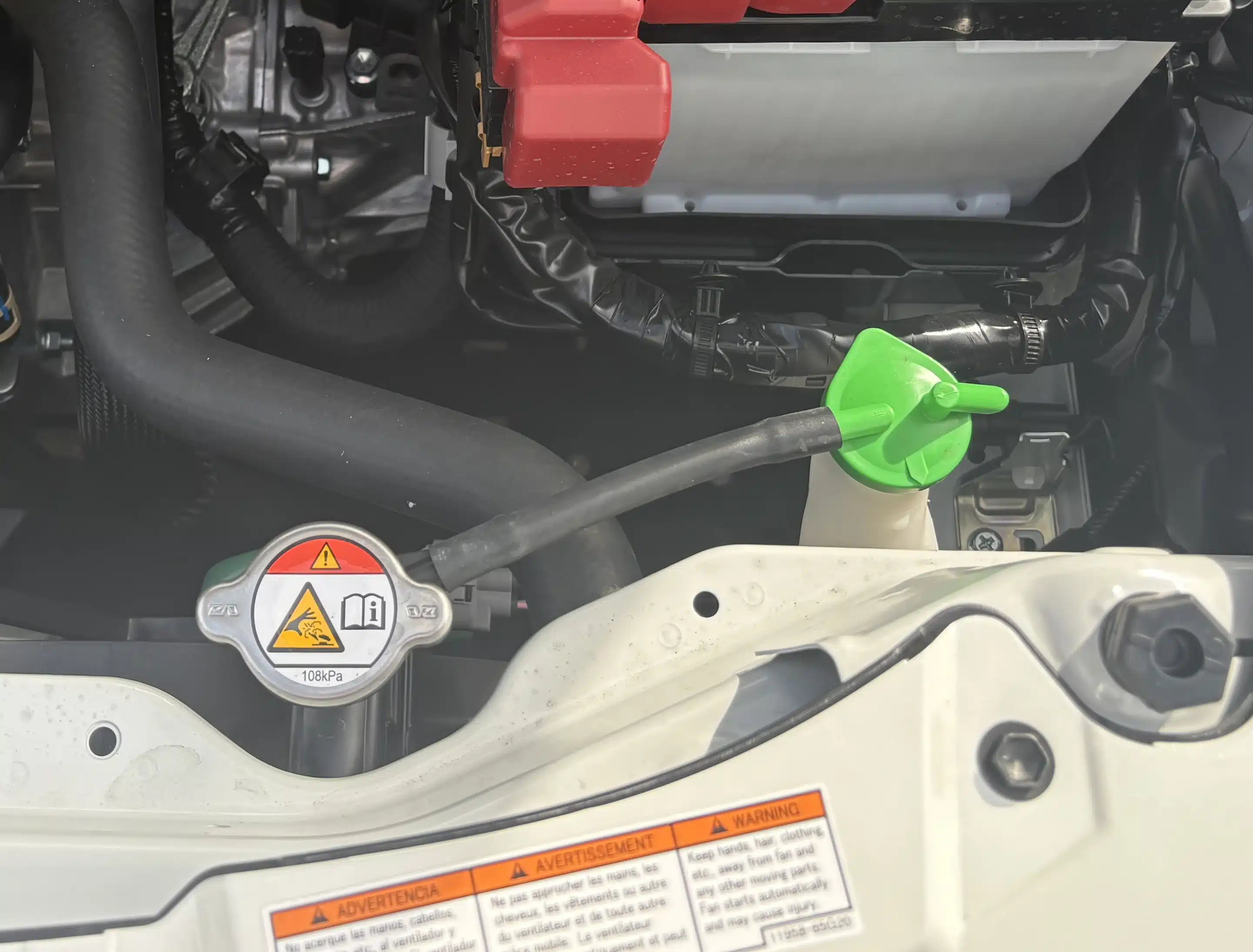

Engine coolant tank
- Location: Look for the translucent coolant reservoir with level markings.
- How to check: Only check the coolant level when the engine is cold. The fluid should be between the MIN and MAX marks.
- Safety note: Never remove the coolant cap when the engine is hot, as pressurised steam or hot coolant can escape and cause serious burns.
Driving test tip
Why this matters for your test
During the driving test, the examiner may ask you a “Tell Me” question before you drive or a “Show Me” question while driving. Knowing the Suzuki Swift engine bay layout helps you answer calmly and safely, rather than peering under the bonnet like it contains pirate treasure.
Suzuki Swift Engine Bay FAQs
The engine oil dipstick is found under the bonnet, usually with a brightly coloured handle.
To check the oil level, remove the dipstick, wipe it clean, reinsert it fully, then remove it again and check that the oil sits between the MIN and MAX marks.
Suzuki recommends 0W-20 engine oil for the Suzuki Swift 1.2 Mild Hybrid engine.
Always check your vehicle handbook before topping up, and avoid overfilling the engine oil.
The coolant tank is the translucent reservoir under the bonnet with level markings on the side.
Only check the coolant level when the engine is cold. The coolant should sit between the MIN and MAX marks.
No. You should never remove the coolant cap when the engine is hot.
Hot coolant and pressurised steam can escape and cause serious burns. Wait until the engine has cooled before checking or topping up.
The brake fluid reservoir is usually found towards the rear of the engine bay, near the bulkhead.
You should check that the fluid level is between the MIN and MAX marks. If it is low, get it checked before driving.
The screen wash reservoir is usually marked with a windscreen washer symbol and often has a blue cap.
Open the cap and top it up using a proper screen wash mixture, especially during winter to help prevent freezing.
Yes. These checks can be part of the DVSA Show Me, Tell Me vehicle safety questions.
You may be asked to explain how you would check the engine oil, coolant, brake fluid or screen wash before driving.
