Ford Focus TDCi 1.5 Diesel – Engine Bay Guide for Learner Drivers
Show me Tell me Questions
If you’re preparing for your UK driving test, you’ll need to answer Show Me, Tell Me questions about basic car safety and maintenance. One of the most common topics? Identifying and checking key components under the bonnet.

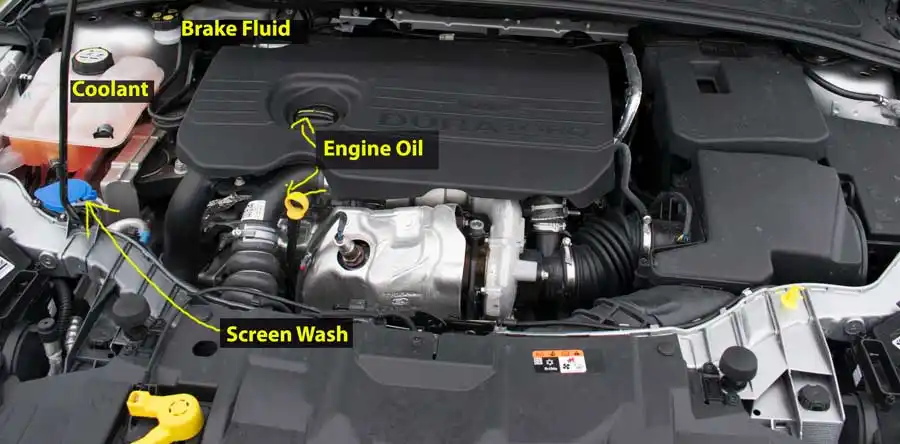

This guide explains the Ford Focus 1.5 TDCi diesel engine bay layout so you can confidently answer questions about brake fluid, coolant, engine oil, and screenwash.
🚗 Why Learn This?
During your practical test, your examiner might ask you to “Open the bonnet and tell me how you’d check…”. Knowing these locations and checks helps you demonstrate safe car maintenance knowledge—an essential driving skill.
This guide explains the Ford Focus 1.5 TDCi diesel engine bay layout so you can confidently answer questions about brake fluid, coolant, engine oil, and screenwash.

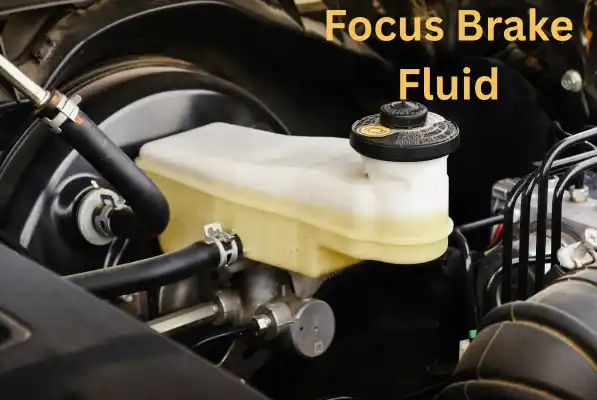

🔧 Brake Fluid Reservoir
- Location: Rear of the engine bay on the driver’s side, with a yellow brake symbol on the cap.
- How to Check: Make sure the fluid level sits between the “min” and “max” marks on the reservoir.
- Tip: Low brake fluid may indicate a leak or brake wear. Always get it checked if you need to top up frequently.

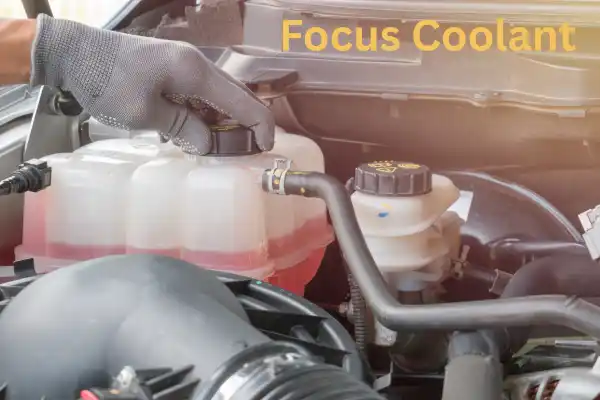

🌡️ Engine Coolant Tank
- Location: Just in front of the brake fluid reservoir. It’s the largest bottle in the bay, usually with a black cap.
- How to Check: Coolant level should be between the “min” and “max” marks.
- ⚠️ Important: Never open the coolant cap when the engine is hot—it can cause burns.
- Tip: If you’re topping up often, it could mean a leak or engine issue.

🛢️ Engine Oil (Dipstick)
Location: Near the centre of the engine bay, with a yellow-handled dipstick.
How to Check:
- Remove the dipstick and wipe it clean.
- Reinsert it fully, then pull it out again.
- The oil level should be between the two notches.
- Topping Up: Add the correct oil grade via the oil filler cap next to the dipstick. Don’t overfill.

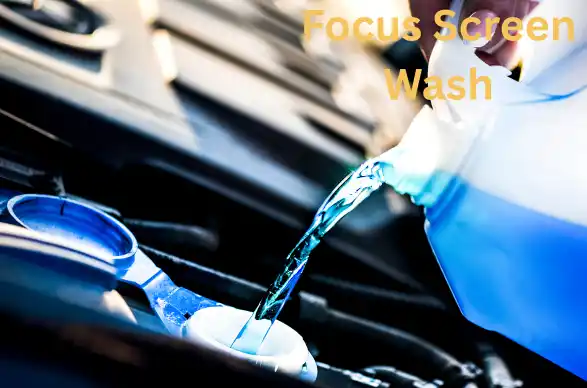

🚿 Screenwash Reservoir
- Location: At the front of the engine bay.
- How to Check: Open the cap to see the level—there are usually no min/max marks.
- Tip: Always keep screenwash topped up for clear visibility in all weather.

⭐ Quick Test-Ready Summary
✅ Learn these four key parts under the bonnet:
- Brake Fluid Reservoir
- Engine Coolant Tank
- Engine Oil Dipstick
- Screenwash Bottle
✅ Know how to check each one safely.
✅ Be ready to explain your check confidently during your test.
📌 Final Advice for Learners
Spending just a few minutes familiarising yourself with your Ford Focus’s engine bay can make a big difference on test day. It shows you understand basic car maintenance and care about safety—key qualities of a good driver.
