Toyota Yaris 1.5L Hybrid Electric Engine
Toyota Yaris Hybrid – Engine Bay Guide (Show Me, Tell Me)

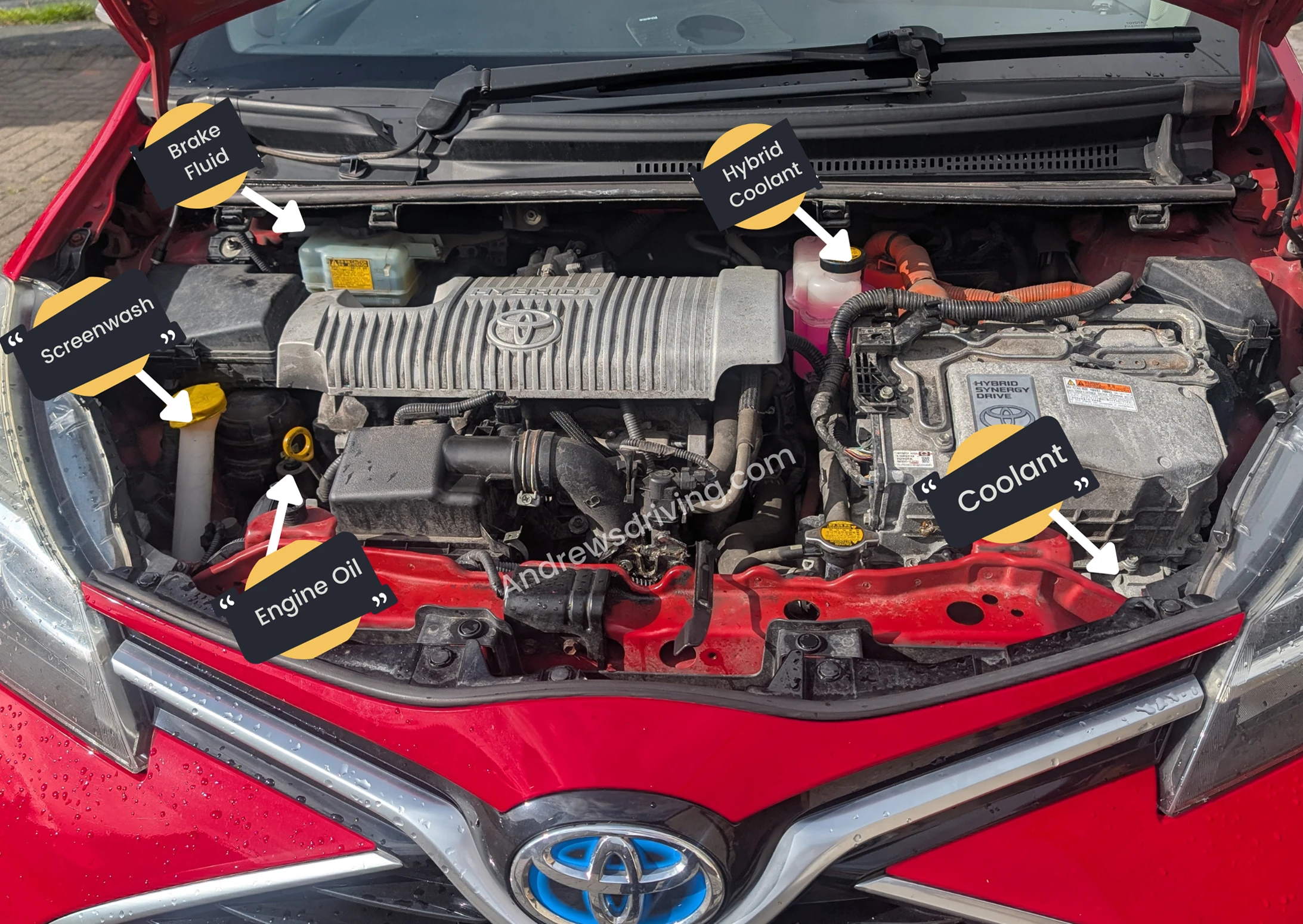

This diagram shows the main parts under the bonnet of your Yaris Hybrid. You might be asked about these in your driving test.
The labels point to:
-
Brake fluid tank – helps the brakes work.
-
Coolant tank – keeps the engine cool.
-
Oil dipstick – checks the engine oil level.
-
Screen wash bottle – cleans the windscreen.
Learning where these parts are will help you answer questions in the Show Me, Tell Me section and show that you know how to look after your car.
Toyota Yaris Hybrid – Engine Bay Guide (Show Me, Tell Me)
This diagram shows the main parts under the bonnet of your Yaris Hybrid. You might be asked about these in your driving test.
The labels point to:
-
Brake fluid tank – helps the brakes work.
-
Engine coolant tank – keeps the engine cool.
-
Hybrid inverter coolant tank – keeps the hybrid system at the right temperature.
-
Oil dipstick – checks the engine oil level.
-
Screen wash bottle – cleans the windscreen.
⚠️ Safety Note:
The Yaris Hybrid has orange high-voltage wiring in the engine bay. Never touch these cables or components – they carry very high voltage and can be dangerous.
Learning where these parts are will help you answer Show Me, Tell Me questions and show that you know how to look after your car.
Brake Fluid
- Location: At the back of the engine bay, with a black cap.
-
How to check: Make sure the brake fluid level is between the MIN and MAX marks on the side of the bottle.
Engine Coolant Tank
Location: Next to the brake fluid reservoir, also at the back of the engine bay, with a black cap.
-
-
How to check: The coolant level should be between the MIN and MAX marks on the tank. (If the engine is hot, the level may sit slightly above MAX—this is normal.)
-
Safety note: Never open the black cap when the engine is hot—wait until it has cooled.
-
Top-up: Use the green cap on the right to add coolant, filling to the correct level.
-
Extra caution: If you often need to top up coolant, it could mean there’s a leak or engine problem. Ask a mechanic to check it.
-
Engine Oil (Dipstick)
-
-
Location: Left of the engine bay, marked in yellow.
-
How to check: Remove the dipstick, wipe it clean, push it fully back in, then remove again to read. The oil level should be between the two notches.
-
Top-up: Add the correct grade of oil (usually 0W-20 or 5W-30) using the filler cap next to the dipstick. Do not overfill.
-
Extra caution: If you often need to top up oil, this may mean a leak or engine problem—have it checked by a mechanic.
-
Screenwash Reservoir
-
-
Location: Front left corner of the engine bay, with a blue cap.
-
How to check: Look inside—top up if the level is low.
-
Top-up: Add screen wash fluid directly through the filler neck.
-
Tip: In winter, use proper washer fluid mix to stop it freezing.
-
Why This Matters for Your Test
This Toyota Yaris Hybrid engine diagram highlights the key parts you may be asked about in the “Show Me, Tell Me” questions during your driving test. It shows the brake fluid reservoir, engine coolant tank, hybrid inverter coolant tank, oil dipstick, and screen wash bottle, making under-bonnet checks simple to remember.
⚠️ Safety Note: The Yaris Hybrid has orange high-voltage wiring in the engine bay. These carry dangerous electrical power—never touch or tamper with them.
Knowing your Yaris Hybrid engine layout builds confidence and helps you give clear answers in the Show Me, Tell Me section. Use this guide to learn where everything is, so you can show safe car maintenance knowledge on test day.
Perfect for both learners and instructors who want a simple, easy-to-read Yaris Hybrid engine diagram and checklist.
Free download Yaris Hybrid Driving Test “Show Me, Tell Me” PDF Guide
